GT60 Guide Tube

GT60 Guide Tube – Ensuring Precise Alignment for Efficient Drilling Operations

The GT60 Guide Tube is an essential component in top hammer drilling systems, designed to improve drilling accuracy, enhance operational efficiency, and extend the life of drilling tools. With its robust construction and high-quality materials, the GT60 Guide Tube ensures optimal performance in demanding mining, construction, and geotechnical drilling environments.

What is a GT60 Guide Tube?

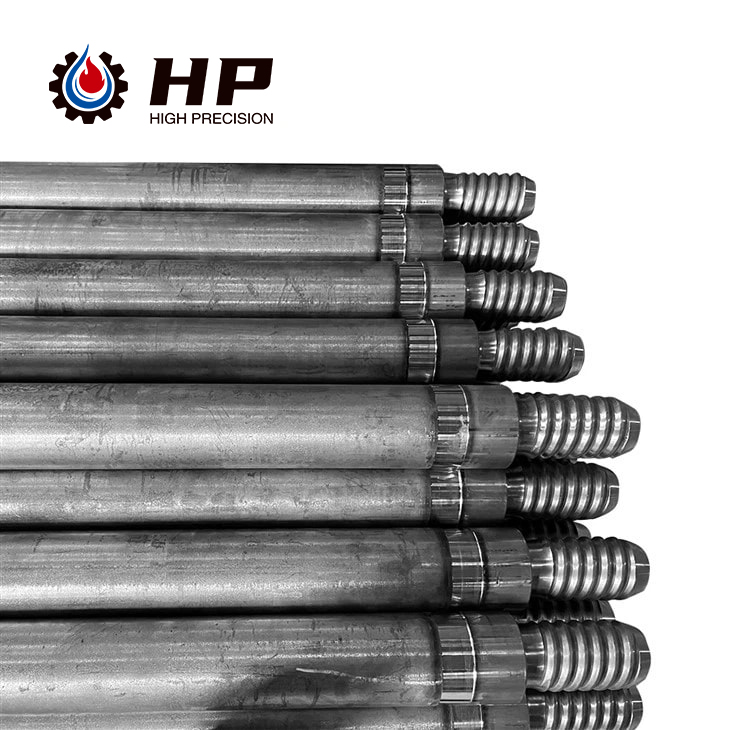

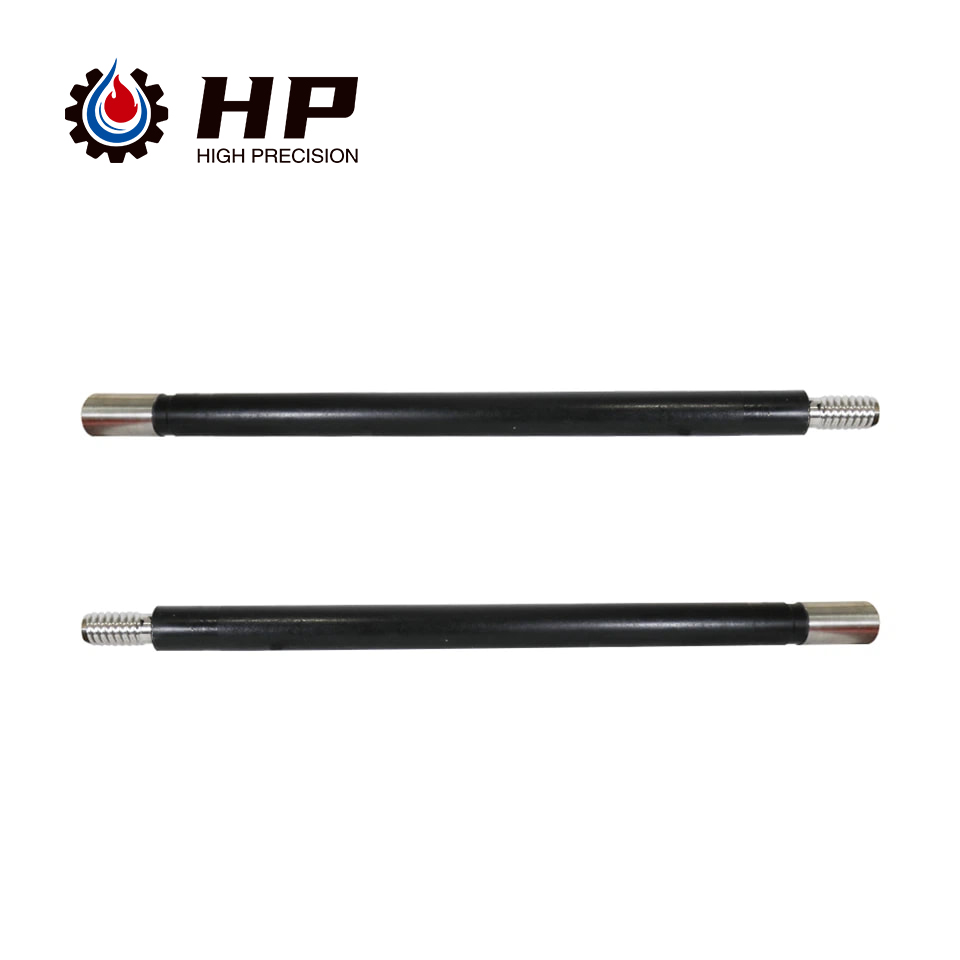

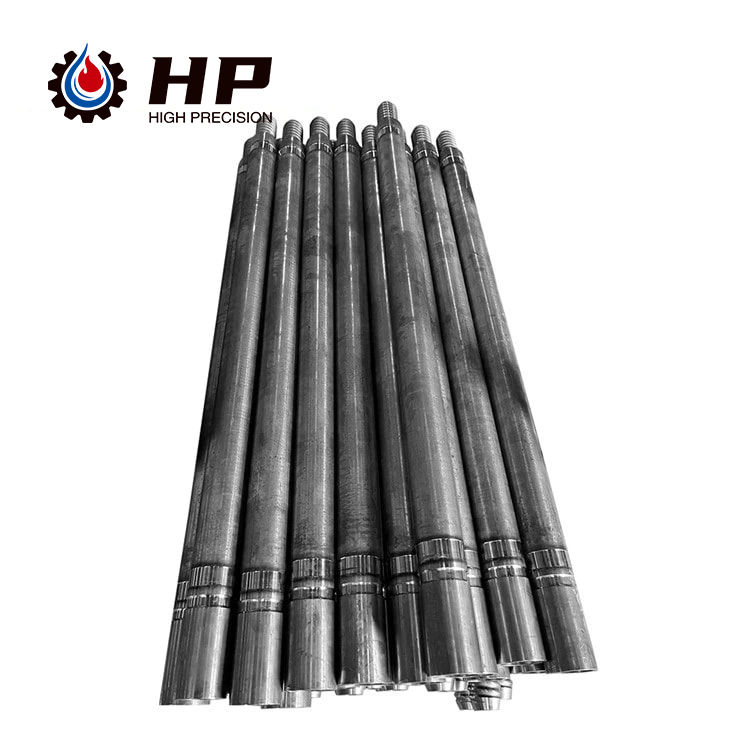

A GT60 Guide Tube is a cylindrical tube that guides the drill rods and bits during the drilling process. Specifically designed for use with GT60 threaded rods, it helps maintain the alignment between the drill bit and rod, preventing deviation and ensuring a straight and accurate borehole. The GT60 Guide Tube plays a critical role in reducing friction, increasing the efficiency of energy transfer, and extending the life of your drilling equipment.

Key Features of the GT60 Guide Tube

• High-Strength Steel Construction: The GT60 Guide Tube is crafted from durable, heat-treated steel, ensuring high wear resistance and long-lasting performance.

• Optimized Internal Design: Features a smooth internal surface to minimize friction and maximize the transfer of energy from the drill rig to the bit.

• Enhanced Alignment: Helps to maintain proper alignment between the drill rod and bit, ensuring that the borehole remains straight and consistent.

• Corrosion Resistance: Designed to withstand harsh working conditions, including moisture, dust, and abrasive materials, without compromising performance.

Benefits of Using a GT60 Guide Tube

1. Improved Drilling Accuracy
   The GT60 Guide Tube keeps the drill rod and bit properly aligned, ensuring precise hole placement and reducing the risk of deviation, which is crucial for applications such as tunneling, mining, and exploration drilling.

2. Increased Efficiency
   By minimizing friction and stabilizing the drilling system, the guide tube enhances overall drilling efficiency, allowing for faster and more consistent results.

3. Extended Tool Life
   The durable design of the GT60 Guide Tube reduces wear on both the guide tube and the drill bit, ultimately extending their service life and minimizing the need for frequent replacements.

4. Versatility
   Compatible with various GT60 rods and drill bits, the GT60 Guide Tube is versatile and suitable for a wide range of drilling applications, from mining and tunneling to construction and geotechnical drilling.

Common Applications for GT60 Guide Tube

• Mining Operations: Crucial for both underground and surface mining, the GT60 Guide Tube ensures accurate drilling and optimal ore extraction.

• Tunneling and Excavation: Used in tunnel construction to stabilize the drill rod and maintain alignment during the drilling process.

• Quarrying: Ideal for drilling precise blast holes in quarries, improving hole placement and overall blasting effectiveness.

• Geotechnical Drilling: Used for soil investigations and exploratory drilling, where accuracy is paramount for obtaining reliable data.

How to Choose the Right GT60 Guide Tube

When selecting a GT60 Guide Tube, consider the following factors:

• Compatibility with Drill Rods and Bits: Ensure that the guide tube is compatible with your specific GT60 threaded rods and drill bits for optimal performance.

• Size and Length: Choose a guide tube that fits the required drilling depth and borehole diameter for your project.

• Material Quality: Opt for a guide tube made from high-quality, corrosion-resistant steel to withstand harsh drilling environments.

• Application Requirements: Evaluate the specific drilling conditions, such as rock type and terrain, to determine the best design and size for your needs.

Maintenance Tips for GT60 Guide Tube

• Inspect Regularly: Check the guide tube for wear and tear, especially on the inner surface, which can affect the efficiency of the drilling operation.

• Lubricate Connections: Use a high-quality lubricant on the threaded connections to prevent seizing and reduce friction during operation.

• Clean After Use: Clean the guide tube after each drilling session to remove dirt, debris, and material buildup, which can impact performance.

• Store Properly: Store the guide tube in a dry, clean area when not in use to prevent rust and ensure its longevity.

Conclusion

The GT60 Guide Tube is an indispensable tool for achieving high precision and efficiency in drilling operations. Whether you're working in mining, tunneling, quarrying, or geotechnical drilling, the GT60 Guide Tube ensures the stability and alignment of your drilling system, resulting in accurate boreholes and enhanced productivity. Choose a high-quality GT60 Guide Tube to improve your drilling efficiency, reduce downtime, and extend the life of your equipment.
