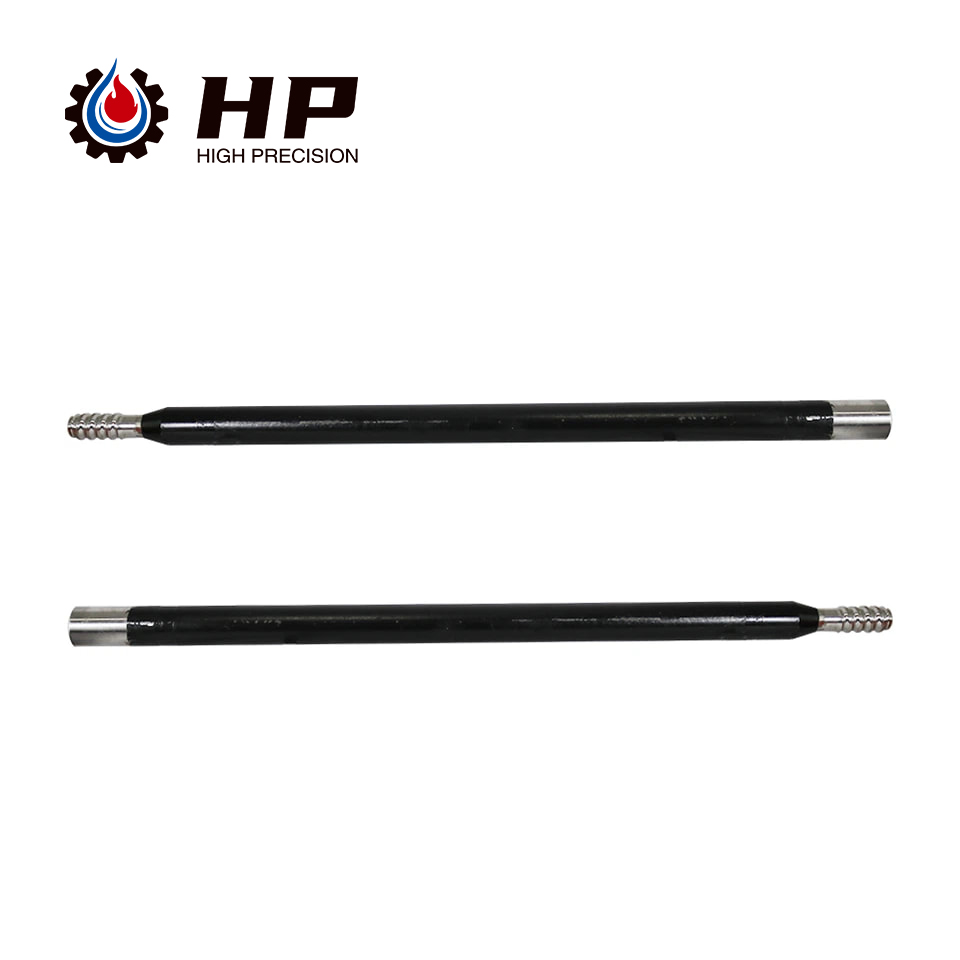

T38 Guide Tube

T38 Guide Tube – Reliable Tool for Precise Drilling and Efficient Operation

The T38 Guide Tube is an essential component in top hammer drilling systems, designed to ensure accurate and efficient drilling. It acts as a guide for the drill rods and bits, ensuring stable operation and minimizing the risk of misalignment during drilling. With its robust design and durability, the T38 Guide Tube is widely used in mining, construction, and geotechnical drilling applications.

What is a T38 Guide Tube?

A T38 Guide Tube is a protective casing used to guide the drill rod during the drilling process. It is specifically designed for use with T38 threaded rods, making it an integral part of the top hammer drilling system. The guide tube helps to keep the drill bit centered and stable, ensuring that the borehole remains straight and free of deviation. Its primary role is to enhance the accuracy and efficiency of the drilling operation.

Key Features of the T38 Guide Tube

• High-Quality Steel Construction: The T38 Guide Tube is made from high-strength steel, providing superior durability and resistance to wear and corrosion.

• Precision Engineering: Designed with a smooth interior surface to reduce friction and minimize energy loss during drilling.

• Enhanced Alignment: Ensures the drill rod and bit stay aligned, preventing deviation and improving the overall drilling performance.

• Corrosion and Impact Resistance: Built to withstand harsh working conditions, including exposure to moisture, dust, and high-impact forces.

Benefits of Using a T38 Guide Tube

1. Improved Drilling Accuracy
   The T38 Guide Tube helps maintain proper alignment between the drill rod and drill bit, resulting in straighter boreholes and more accurate drilling.

2. Increased Efficiency
   By reducing friction and stabilizing the drilling process, the guide tube enhances the overall efficiency of the drilling operation, allowing for faster and more consistent results.

3. Extended Tool Life
   The durable construction of the T38 Guide Tube helps to protect the drill rod and bit from excessive wear, extending their lifespan and reducing maintenance costs.

4. Versatility
   Compatible with various types of T38 rods and drill bits, the T38 Guide Tube is suitable for a wide range of drilling applications, from mining and tunneling to construction and exploration drilling.

Common Applications for T38 Guide Tube

• Mining Operations: Essential for underground and open-pit mining, where precise drilling is required to ensure efficient ore extraction.

• Tunneling and Excavation: Used in tunnel construction to maintain alignment and stability during drilling.

• Quarrying: Ideal for drilling blast holes in quarries, ensuring accurate hole placement and effective blasting.

• Geotechnical Drilling: Used for exploratory drilling and soil investigations, where precision is crucial for accurate data collection.

How to Choose the Right T38 Guide Tube

When selecting a T38 Guide Tube, consider:

• Rod and Bit Compatibility: Ensure the guide tube is compatible with the T38 threaded rods and bits you are using.

• Length and Size: Choose a guide tube that matches the required length for your specific drilling operation.

• Material Strength: Select a guide tube made from high-quality, durable steel to withstand the conditions of your drilling environment.

• Performance Requirements: Consider the type of drilling (e.g., vertical, inclined) and the formation you're working with to choose the most suitable guide tube design.

Maintenance Tips for T38 Guide Tube

• Inspect for Wear: Regularly check the guide tube for signs of wear or damage, especially on the interior surface.

• Lubricate Connections: Use high-quality lubricants on threaded connections to prevent seizing and ensure smooth operation.

• Clean After Use: After each drilling session, clean the guide tube to remove any debris or material buildup that may cause friction.

• Store Properly: When not in use, store the guide tube in a dry, clean place to prevent rust and corrosion.

Conclusion

The T38 Guide Tube is a vital component for achieving accurate, efficient, and reliable drilling in a variety of industries. Whether you are working in mining, construction, or geotechnical drilling, the T38 Guide Tube ensures your drilling operation is smooth, precise, and cost-effective. Invest in a high-quality T38 Guide Tube to enhance the performance of your drilling system and reduce downtime and maintenance costs.

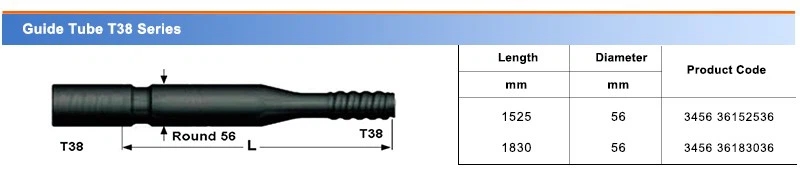

The t38 guide tube is generally made of high-quality steel, which has high strength and durability. The diameter of the tube is usually around 38mm (1.5 inches), and the length can vary depending on the drilling requirements.

The primary function of the T38 guide tube is to guide the drill bit during the drilling process, ensuring that the hole is drilled accurately as per the planned trajectory. This helps in minimizing deviations and errors, leading to efficient and successful drilling operations.

These guide tubes are equipped with features such as enhanced wear resistance, high strength, and precise machining to ensure smooth and stable drilling performance. Their specifications are tailored to meet the demands of different drilling conditions, making them versatile and adaptable for various applications.
