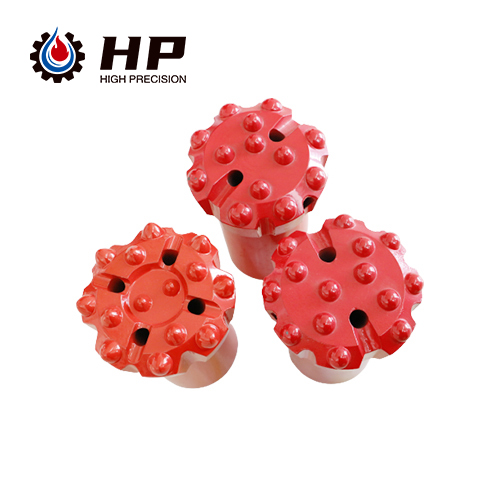

T45 Drop center drill bit
The drop center drill bit is ideal for drilling in medium-hard and low-abrasiveness rock formations with good integrity. Its concave design assists in keeping the thread button bit aligned for drilling straight holes, especially in less consolidated rock. We offer a selection of drop center drill bits to meet your specific needs.
T45 Drop Center Drill Bit: Optimized for Precision and Performance
The T45 Drop Center Drill Bit is a high-performance rock drilling tool designed for demanding top hammer applications in mining, tunneling, and construction. Known for its exceptional penetration rates and drilling accuracy, the T45 Drop Center Drill Bit offers superior control, reduced hole deviation, and increased efficiency in medium to hard rock formations.
With a rugged design, advanced button layout, and efficient flushing capabilities, this drill bit is the preferred choice for professionals who demand reliability and long service life.
What Is a T45 Drop Center Drill Bit?
A T45 Drop Center Drill Bit features a drop center face design and is threaded with the T45 connection standard. The T45 thread is a common mid-range thread type used in top hammer drilling tools, providing a strong connection between the drill bit and rod while minimizing energy loss.
The drop center face of the bit helps stabilize the drilling process by centering the bit more effectively in the hole, reducing wandering and improving hole straightness.
Core Attributes:
Thread Type: T45 – for high torque transfer and secure coupling.
Face Design: Drop center – for accurate hole alignment and reduced deviation.
Button Inserts: High-grade tungsten carbide – available in spherical, ballistic, or parabolic shapes.
Applications: Bench drilling, production drilling, and construction work in hard to very hard rock.
Key Benefits of the T45 Drop Center Drill Bit
Choosing a T45 Drop Center Drill Bit can significantly enhance drilling productivity and accuracy. Here are the top advantages:
✅ Improved Hole Straightness: The drop center face reduces bit deviation, ensuring straighter, cleaner boreholes.
✅ Higher Penetration Rates: Efficient button arrangement and optimized face design allow for faster drilling even in abrasive rock.
✅ Strong T45 Thread Connection: Minimizes energy loss and increases drilling power transfer from the rod to the rock.
✅ Longer Service Life: Heat-treated steel and premium-grade carbide buttons extend wear resistance and reduce replacement frequency.
✅ Versatility Across Applications: Whether you're drilling in open-pit mines, tunnels, or civil infrastructure projects, the T45 Drop Center Drill Bit adapts to your toughest jobs.
Common Applications for T45 Drop Center Drill Bit
The T45 Drop Center Drill Bit is engineered for multiple high-impact environments:
Surface Mining: Ideal for blast hole drilling in benches and quarries.
Underground Drilling: Used for roof bolting, tunneling, and development rounds.
Hydropower Projects: Precision borehole creation in dam and penstock installations.
Infrastructure and Civil Engineering: Reliable for drilling in foundations, metro systems, and highways.
No matter the setting, the T45 Drop Center Drill Bit ensures efficient performance and accurate results.
Types of Carbide Buttons for T45 Drop Center Drill Bit
Different drilling conditions call for different button styles on your T45 Drop Center Drill Bit:
| Button Shape | Performance | Recommended Use |
|---|---|---|
| Spherical | High wear resistance, slower drilling | Very hard or abrasive formations |
| Ballistic | Faster penetration, less durability | Medium to hard formations |
| Parabolic | Balanced wear and speed | General-purpose drilling |
Choosing the right button type enhances the bit’s productivity and extends its service life.
Technical Specifications (Example)
| Specification | Details |
|---|---|
| Thread Type | T45 |
| Diameter Range | 64mm – 102mm |
| Face Type | Drop Center |
| Flushing Holes | 2 or 3, depending on design |
| Button Type Options | Spherical / Ballistic / Parabolic |
| Material | High-alloy steel + Tungsten Carbide |
| Heat Treatment | Carburized and tempered |
Note: Custom designs are available based on site requirements.
How to Maximize T45 Drop Center Drill Bit Performance
To get the most out of your T45 Drop Center Drill Bit, consider the following maintenance and usage tips:
Monitor Wear: Regularly inspect buttons and body for signs of wear or damage.
Regrind Buttons: Sharpen dull carbide buttons to extend bit life and drilling efficiency.
Use Correct Flushing: Ensure adequate air or water flushing to remove debris and cool the bit.
Match Drilling Parameters: Optimize rotation speed and impact energy to the bit diameter and rock hardness.
Conclusion: Why T45 Drop Center Drill Bit Is a Smart Investment
If you're seeking a high-precision, high-performance solution for drilling in challenging rock conditions, the T45 Drop Center Drill Bit is the tool of choice. With its advanced face design, durable materials, and excellent thread compatibility, it ensures faster, straighter, and more efficient drilling—job after job.
Whether for mining, tunneling, or infrastructure development, the T45 Drop Center Drill Bit delivers proven results in the most demanding environments.
